Home » Products » Fine crusher » GFSJ Series High Efficient Crusher
This machine is widely used in such trades as pharmaceutical, foodstuff and chemical etc.
Main Application:
This machine is widely used in such trades as pharmaceutical, foodstuff and chemical etc.
Working principle:
This machine is high speed running equipment, in which, material is crushed by cutting of high speed blade which is of a sharp edge on one side and an impact blade on the other side.
Blades of different sizes and shapes are available for choice according to different materials, and the particle size can be obtained through replacement of screen or adjustment of speed.
Features:
This machine is simple in structure, easy to assemble and clean the crushing chamber, and all parts contacting the material are made of stainless steel,acid and corrosion resistant, making
crushed material be in conformity with hygiene requirement. In addition, this machine has smooth operation, convenient move, low noise, good crushing effect and low power consumption.
| Model | Production Capacity | Fineness of finished product | Adjustable speed | Motor Power | overall dimension | weight |
|---|---|---|---|---|---|---|
| GFSJ-8A IV,V | 10-100kg/h | 12-120mesh | 2100-2800r/min | 3KW | 1050*600*1600mm | 150kg |
| GFSJ-16A IV,V | 50-300kg/h | 12-120mesh | 2100-2900r/min | 5.5KW | 1100*860*1520mm | 250kg |
| GFSJ-32A IV,V | 100-550kg/h | 12-120mesh | 2100-2900r/min | 11KW | 1280*950*1600mm |
320kg |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

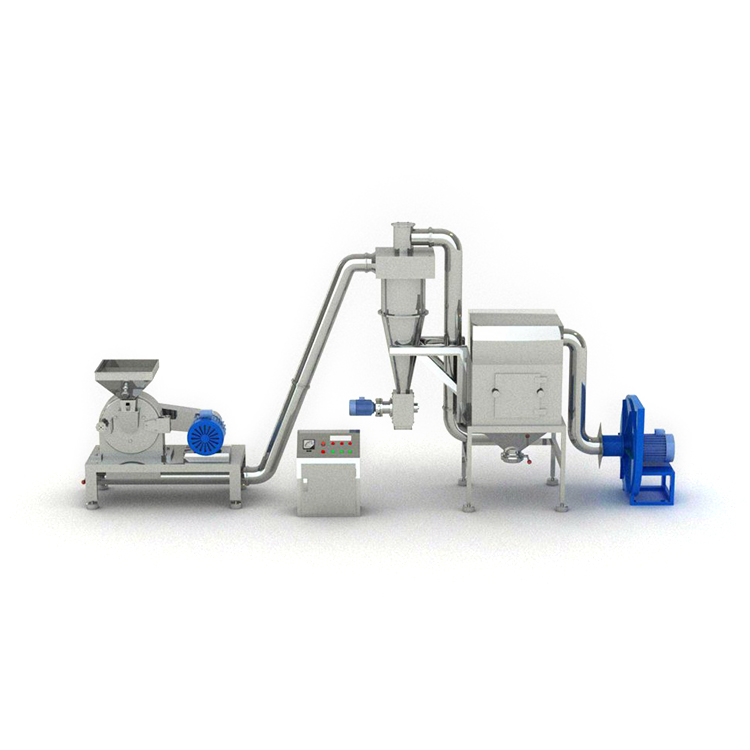

Applied for such trades as pharmaceutical, chemical and foodstuff ect., This machine is a new generation fine crushing equipment combining crushing and dust collection as a whole.
Learn More

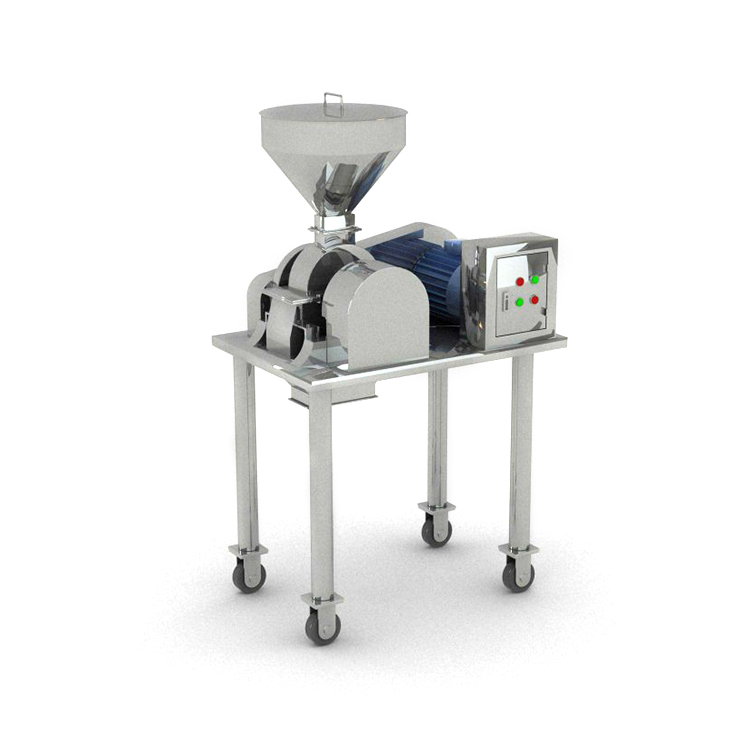

This set is applied for such trades as pharmaceutical, foodstuff, chemical and so on. which is specially used for crush for crushing materials with much fiber or grease.
Learn More
JCFJ Series inner-grading mechanical crusher is the latest-developed super-fine mechanical grinding machine by combining the domestic and overseas advanced technology. A worm grading device is installed in the machine, which will release the satisfied particle from the grinding chamber to avoid over grinding. In this way we not only makes super fine powder,but also we make the particles uniform and even. This machine can carry out dry-grinding and grading operation for all kinds of organic substance and mineral substance,so the powder made by this machine is widely used in the chemicals, metallurgy, mine, energy, electronics, medicine, pesticide, plastic, paper-making, pigment, painting, dyestuff, grinding-stuff, food and cosmetics industries.
This machine is widely used in such trades as pharmaceutical, foodstuff and chemical etc.
Learn More
