Home » Products » Fine crusher » Model WF Series Cyclone Pulse Dust-collecting Fine Pulverizer
This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc., It is a new generation crushing equipment combining crushing, dust collecting and continuous discharge into a unit.
Main Application:
This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc., It is a new generation crushing equipment combining crushing, dust collecting and continuous discharge
into a unit.
Working principle:

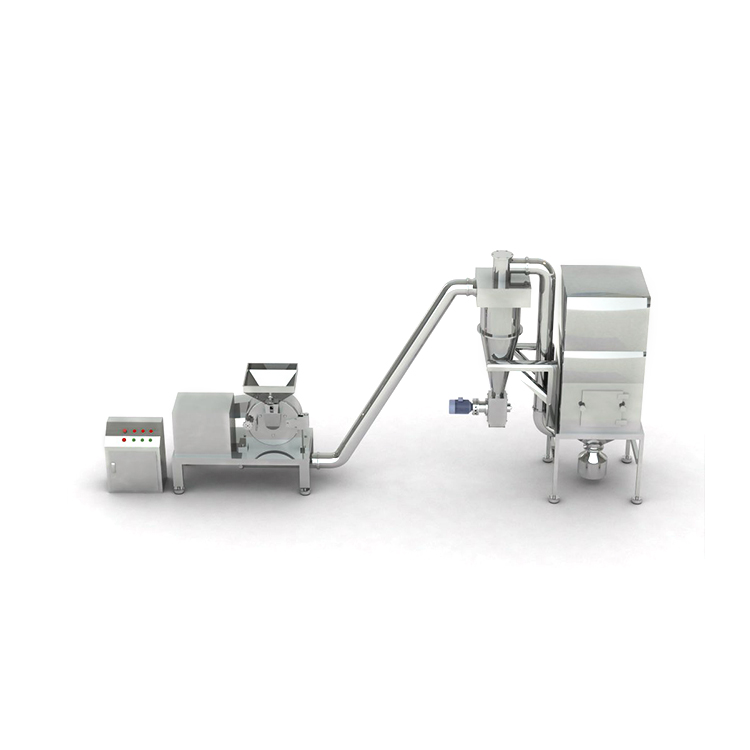

This machine is made up of crusher, cyclone separator, pulse dust-evacuator box and induced fan etc., Material is fed into chamber through the hopper, and crushed by high speed rotating hammers. The crushed
material flows into the cyclone separator by the induced fan and rotating centrifugal force, then discharge through gate blower, dust comes into the pulse dust-collecting box, filtrated and recycled by the filter cylinder.
The crushing size can be adjusted by the screen. Designed by the standard of GMP the whole machine is made of stainless steel, and there is no flying dust during the process of production.
Model
Production Capacity
Feeding Size
Crushing Fineness
Crushing motor
Dust collecting motor
Discharge motor
overall dimension
weight
WF-250
50-100kg/h
≤5mm
80-400mesh
5.5kw
2.2kw
0.75kw
3000*880*2350mm
580kg
WF-350
80-300kg/h
≤5mm
80-400mesh
11kw
3kw
0.75kw
3550*880*2350mm
800kg
WF-450
100-500kg/h
≤5mm
80-400mesh
15kw
4kw
0.75kw
4200*880*2350mm
1200kg
WF-650
300-1000kg/h
≤5mm
80-400mesh
22kw
5.5kw
1.5kw
6560*1100*2480mm
2000kg
WF-850
500-2500kg/h
≤5mm
80-400mesh
37kw
11kw
2.2kw
7800*1100*2480mm
3000kg
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Applied as supporting equipment before fine crushing process in such trades as pharmaceutical chemical and foodstuff etc., this machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.
Learn More

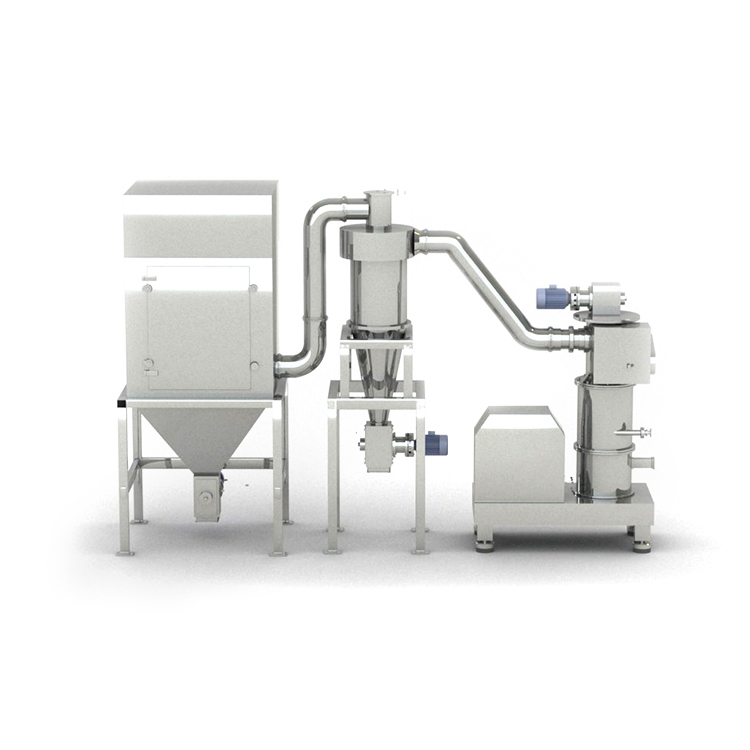

JCFJ Series inner-grading mechanical crusher is the latest-developed super-fine mechanical grinding machine by combining the domestic and overseas advanced technology. A worm grading device is installed in the machine, which will release the satisfied particle from the grinding chamber to avoid over grinding. In this way we not only makes super fine powder,but also we make the particles uniform and even. This machine can carry out dry-grinding and grading operation for all kinds of organic substance and mineral substance,so the powder made by this machine is widely used in the chemicals, metallurgy, mine, energy, electronics, medicine, pesticide, plastic, paper-making, pigment, painting, dyestuff, grinding-stuff, food and cosmetics industries.
