Used for super fine crushing of fiber material in such trades as pharmaceutic, chemical and foodstuff etc., Including glossy ganoderma, liquorice, shrimp shell and every kind of bone and plant fiber etc., With the crushing fineness reaching micron grade, this machine has reached the international advanced level.
Main Application:
Used for super fine crushing of fiber material in such trades as pharmaceutic, chemical and foodstuff etc., Including glossy ganoderma, liquorice, shrimp shell and every kind of bone and
plant fiber etc., With the crushing fineness reaching micron grade, this machine has reached the international advanced level.
Working principle:

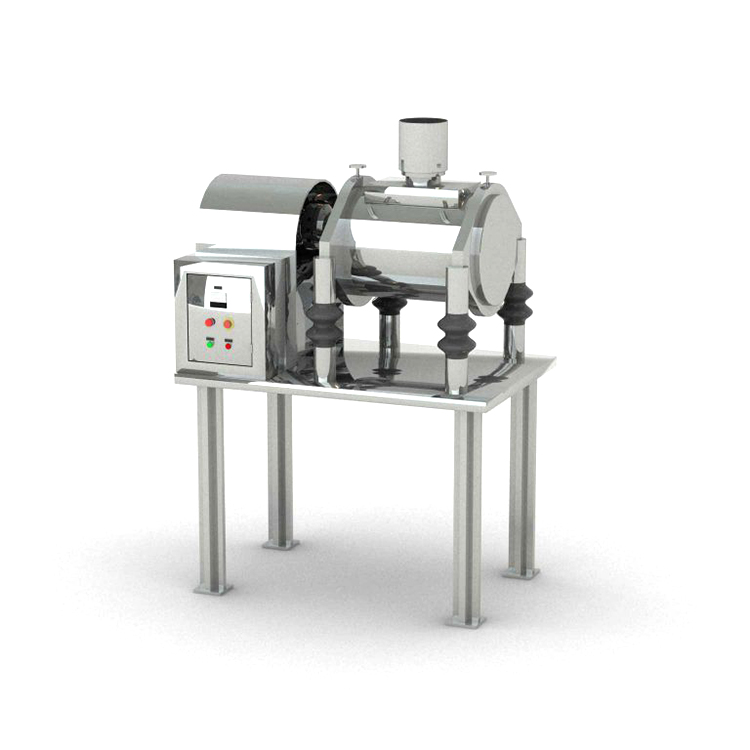

This machine is a horizontal vibrating mill. The material is fed into the crushing chamber through a hopper and crushed through collision and grinding with grinding barin side the chamber
under the effect of vibration. Furthermore, it is equipped with water cooling unit to control the temperature inside the crushing chamber. Designed according to GMP standard and wholly
made of stainless, this equipment can be operated under full close conditions without dust flying and environmental pollution.
Model
Working volume
Handing capacity
Crushing Fineness
Cooling type
Power
overall dimension
weigh
WFM-10
10L
2-2.5kg/h
200-1800mesh
Water cooling
1.5kw
1200*800*1400mm
580kg
WFM-50
50L
10-30kg/h
200-1800mesh
Water cooling
7.5kw
1700*900*1700mm
1500kg
WFM-100
100L
20-60kg/h
200-1800mesh
Water cooling
11kw
2850*1200*1800mm
2800kg
