Home » Products » Liquid Filler » AVF Automatic sauce filling machine

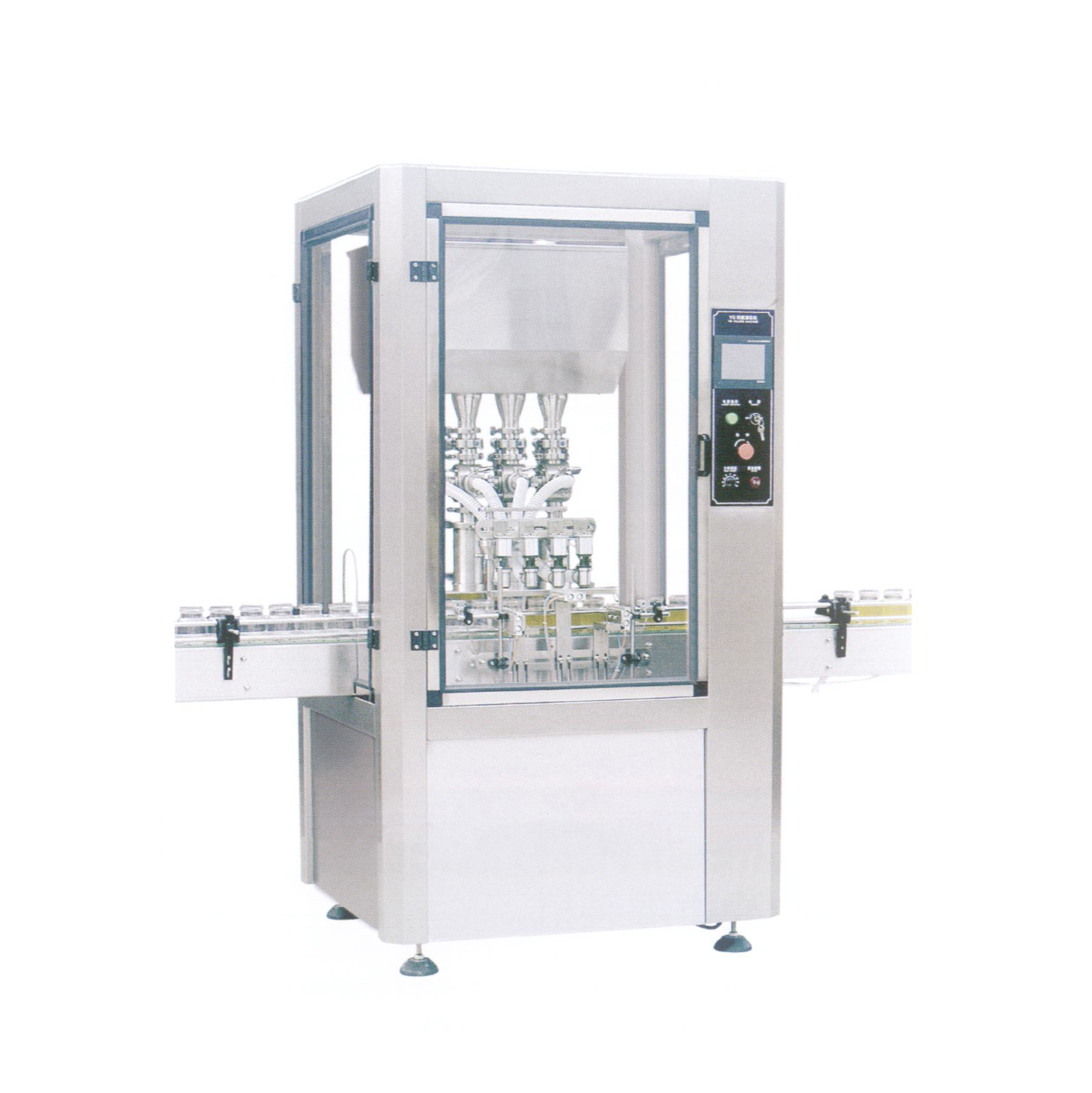

AVF Automatic sauce filling machine is designed by referring to the same kind of foreign filling machines with extra functions increased The product is simple and convenient in operation, error correction, machine cleaning and maintenance. Widely used for filling various kinds of viscosity liquid products in the industries of, foodstuffs, pharmaceutics etc.
Feature
u Adopt piston pump to fill high precision, large range of adjusting dosage
u It allows to adjustment of filling colume for all filling pumps at the same time, also for minor adjustment of each filling pump to achieve fill high volume accuracy. This pumpsystem don't absorb thematerial, good chemical stability
u Stainless steel rotary valve to fit to various kind of viscosity product
u Auto shut on/off filling nozzle, avoid leaking and drawing
u Header liquid hopper, auto level sensor control product supply
u Frequancy conversion control speed, auto count output, no bottle no fill
u The whole machine is designed according to requirements of GMP
Main technical parameters
|
Items |
AVF-4 |
AVF-6 |
AVF-8 |
AVF-12 |
AVF-16 |
|
Filling nozzles |
4 |
6 |
8 |
12 |
16 |
|
Filling range |
20-5000ml |
20-500ml |
|||
|
Ideal filling range |
20-100ml/50-250ml/100-500ml/200-1000ml/500-2500ml/1000-5000ml |
||||
|
Filling speed(100ml)bpm |
30-40bpm |
40-60bpm |
60-70bpm |
70-100bpm |
90-120bpm |
|
Filling precision |
20-1000ml:≤±1% 1000-5000ml:≤±0.5% |
||||
|
Air pressure range |
0.4 - 0.6MPa |
||||
|
Air consumption |
10m3/h |
15m3/h |
20m3/h |
30m3/h |
40m3/h |
|
Power supply |
220V 50/60Hz |
||||
|
Power consumption |
0.75Kw |
0.75Kw |
1.2Kw |
2.2Kw |
2.2Kw |
|
Single machine noise |
≤50Db |
||||
|
Net weight |
550Kg |
900Kg |
1150Kg |
1500Kg |
1750Kg |
|
Overall dimension(mm) |
1300*1200*1800 |
1600*1200*1800 |
1900*1200*1800 |
2300*1200*1800 |
2600*1200*1800 |
